System specifications on the data plate

The data plate on the plasma power supply shows two sets of ratings: one for the International Electrotechnical Commission (IEC) and one for Hypertherm®.

The HYP ratings are Hypertherm plasma power supply ratings. They show the capability of the system related to the internal testing done by Hypertherm.
The IEC ratings are the minimum ratings that the system must get to meet the requirements of IEC standard 60974-1.

CSA and CE/CCC data plates have small differences.

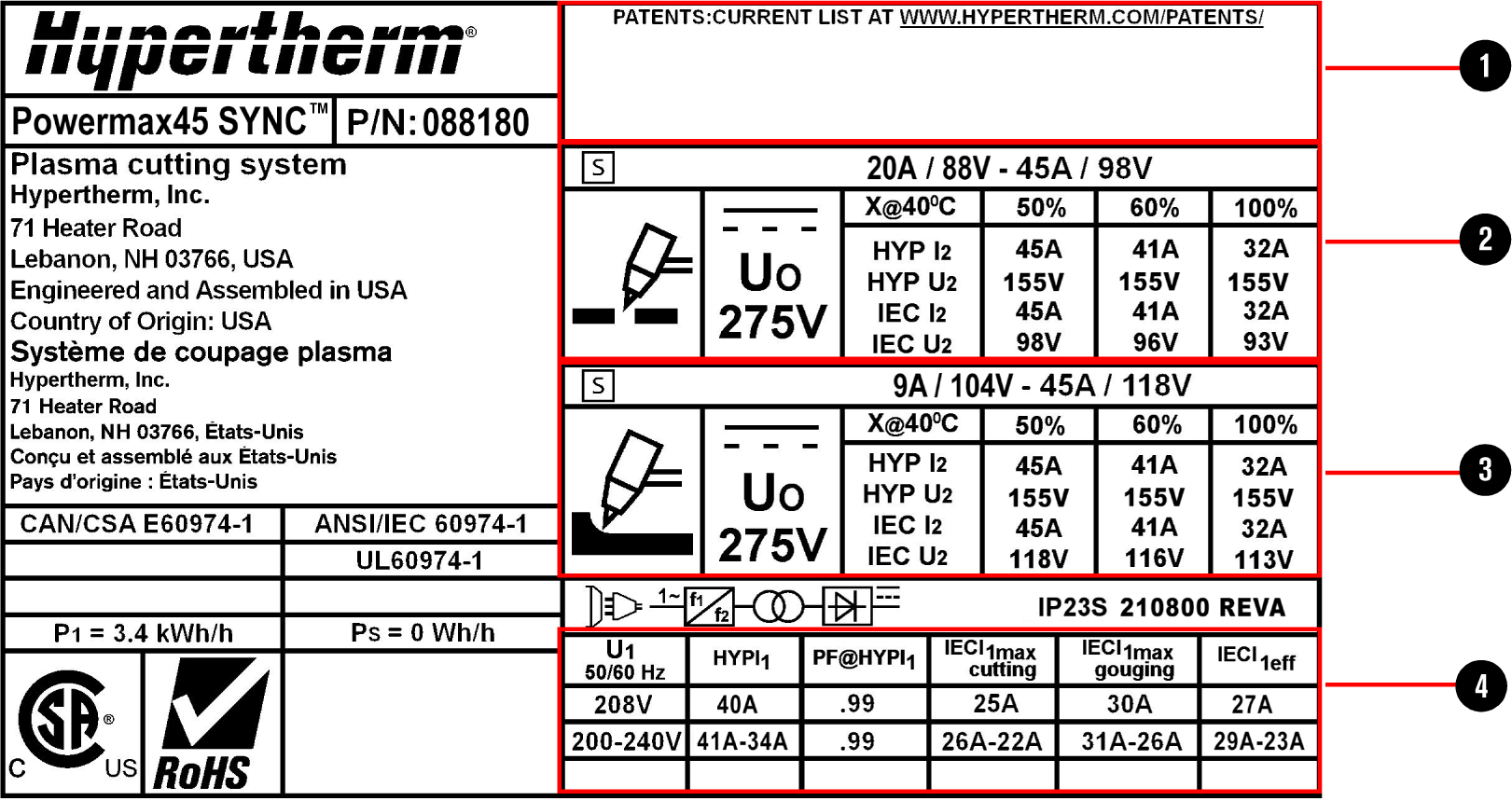

The image shows an example of a data plate with callouts pointing to different sections. — Figure 1. CSA data plate example

1	Serial number, bar code, and date made
2	Plasma cutting ratings
3	Plasma gouging ratings
4	Plasma power supply ratings

HYP: Hypertherm internal rating
IEC: IEC rating
I₁: Input current (A)
I₂: Conventional welding current (A)
PF: Power factor
U₀: Rated no load voltage
U₁: Input voltage (V)
U₂: Conventional welding voltage (V)
X: Duty cycle (%)
